YY (Q) W type skid-mounted oil-gas-fired organic heat carrier heating furnace and integral oil-gas heat conducting oil furnace, also known as skid-mounted gas heat conducting oil furnace, fix all the equipment of gas heat conducting oil furnace on the same base made of angle steel or I-beam steel, and use skid bar to move the whole heating equipment.
Horizontal integral skid-mounted oil-gas heat conducting oil furnace produced by Heng'an Boiler assembles valves, pumps and other equipments. When connecting with other equipments in the system, it is no longer necessary to install valves, meters and other equipments in the middle. It only needs to be connected by pipelines. Steel structure, pipelines, equipment, and electrical instruments are suitable for "field construction" which lacks construction resources, or construction bureaus, construction institutes, road and bridge companies which require high assembly accuracy and high construction cost.
This series of skid-mounted heat-conducting oil furnaces (complete movable heat-conducting oil heating furnaces) are mainly equipped with horizontal or vertical heat-conducting oil furnaces (fuel, gas, methanol, electric heating or coal-fired), burners, high-temperature circulating pumps, oil injection pumps, high-level troughs, low-level troughs, filters, oil and gas separators, flues, chimneys, high-temperature valves, meters, flanges, gaskets, heat-conducting oil pipeline systems, electricity. Controller control and other components. Full-mounted oil-fired and gas-fired furnaces, users do not need to install by themselves, but can be assembled on site. This kind of boiler is convenient to use, flexible to disassemble and occupies a small area. Detailed description of skid-mounted heat conducting oil furnace: skid-mounted heat conducting oil furnace system structure: all equipment installed on the same skid seat. Organic heat carrier furnace (main engine of heat conducting oil furnace), burner, chimney, oil storage tank, expansion tank, circulating oil pump, oil injection pump, blower and other auxiliary equipment.
The main advantages are as follows:
1. Integrated and modular skid-mounted structure system is suitable for organic heat carrier furnace.
2. Organic heat carrier furnace has been applied more and more because of its obvious advantages such as high temperature, no pressure or low pressure.
3. The traditional organic heat carrier boilers are installed in the boiler room. The auxiliary machines are scattered and the area of the boiler room is relatively large. In order to make the boiler run, it is necessary to configure a variety of pipes, valves and control lines.
4. The heat conducting oil is pumped into the organic heat carrier boiler by high temperature circulating pump, which is heated by the boiler and transported to the heating equipment. Temperature control system and temperature stabilization system are configured according to the requirement of user's temperature precision. Expansion tank plays the role of constant pressure, exhaust, supplementary system heat conducting oil and absorption heat conducting oil thermal expansion in the whole system.
5. The skid-mounted boiler system is equipped with energy-saving devices, which can make full use of the waste heat of the boiler tail gas and reach the national energy consumption level of 1-3, and the boiler efficiency can reach more than 90%. Energy-saving devices can be equipped with steam generator, water heater or air preheater according to different needs of users.
6. In terms of control, the system provides a variety of detection means, including heat conducting oil flow rate, temperature and pressure; fuel flow rate, temperature and pressure; tank liquid level; exhaust gas and air temperature at multiple points; combustion status, to ensure the safe and normal use of the boiler. It can also provide monitoring points and operation status to DCS and other upper monitoring systems to achieve unattended and remote monitoring and control.
7. From the point of view of installation environment, the skid-mounted heat conducting oil furnace system only needs to set up a concrete load-bearing platform on the spot. No special boiler room is needed. It can be placed outdoors or in a simple rain shed. It can be rainproof, dustproof or explosion-proof according to user's needs. At the same time, it has achieved good operation results in the plateau area.
8. Installation of all welding in the original plant, welding quality and accurate installation of components. All parts in the factory have passed all kinds of testing stipulated by the state and industry to ensure that all parts are qualified and put into use at the time of leaving the factory.
9. The expansion tank is equipped with overflow pipe, and the oil storage tank is equipped with baffles. The baffle divides the oil storage tank into the first and second parts in horizontal parallel. The lower end of the baffle is equipped with openings. The overflow pipe of the expansion tank is connected with the first part of the oil storage tank, and the second part of the oil storage tank is connected with the atmosphere. The oil level in the oil storage tank is higher than that in the lower end of the baffle. The expansion tank does not adopt the traditional direct air permeability method, but uses the oil stored in the tank to play the role of oil seal, thus effectively preventing the direct contact between thermal conductive oil and air and avoiding the oxidation damage of thermal conductive oil.
10. The oil storage tank is equipped with an oil supply outlet, the expansion tank is equipped with an oil supply inlet, the oil supply outlet and the oil supply inlet are connected through the oil supply pipe, and the oil supply pump is equipped on the oil supply pipe. The oil storage tank plays a supplementary role to the oil level of the expansion tank. When the oil level of expansion tank is lower than the designated oil level, the filling pump runs automatically and transfers the heat conducting oil in the storage tank to the expansion tank.
11. While possessing all functions of the traditional boiler system, all equipment, chimneys, control boxes and pipes in the boiler system are centrally installed on the same pry seat.

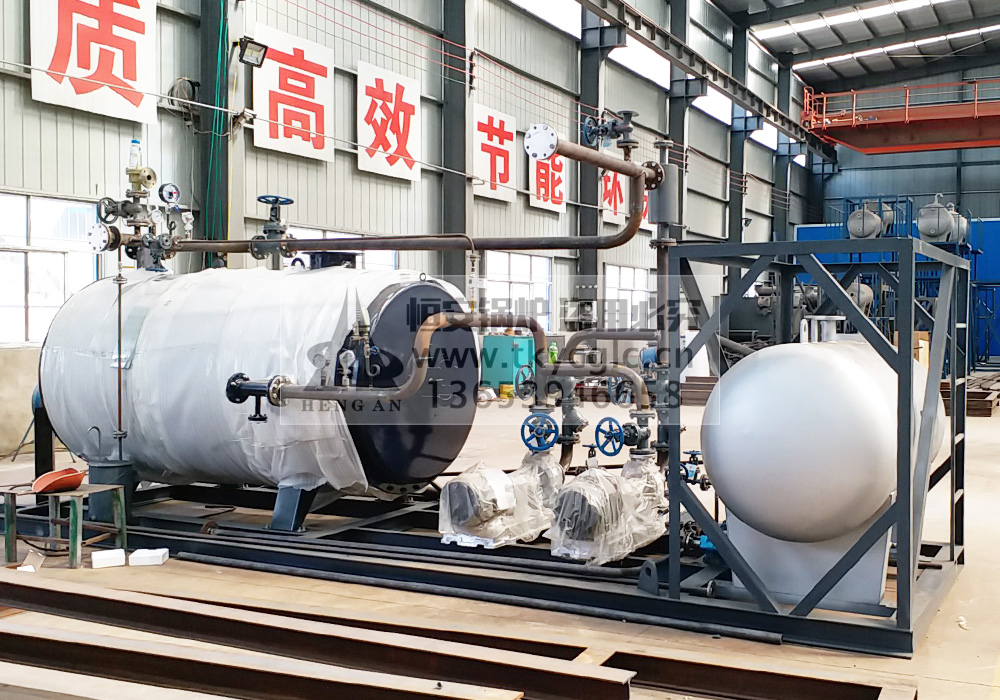

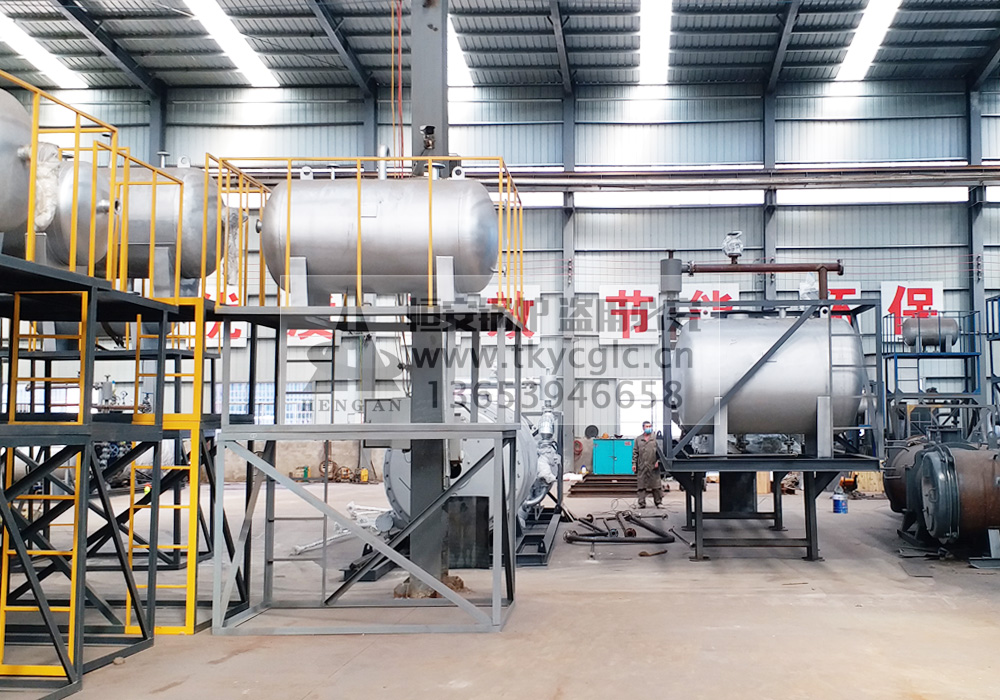

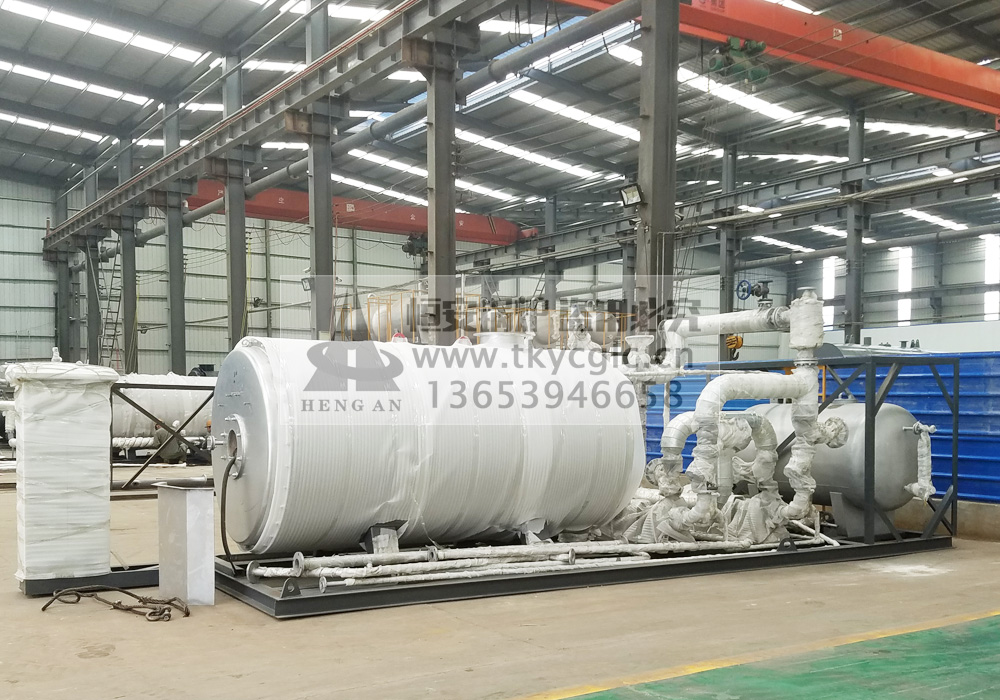

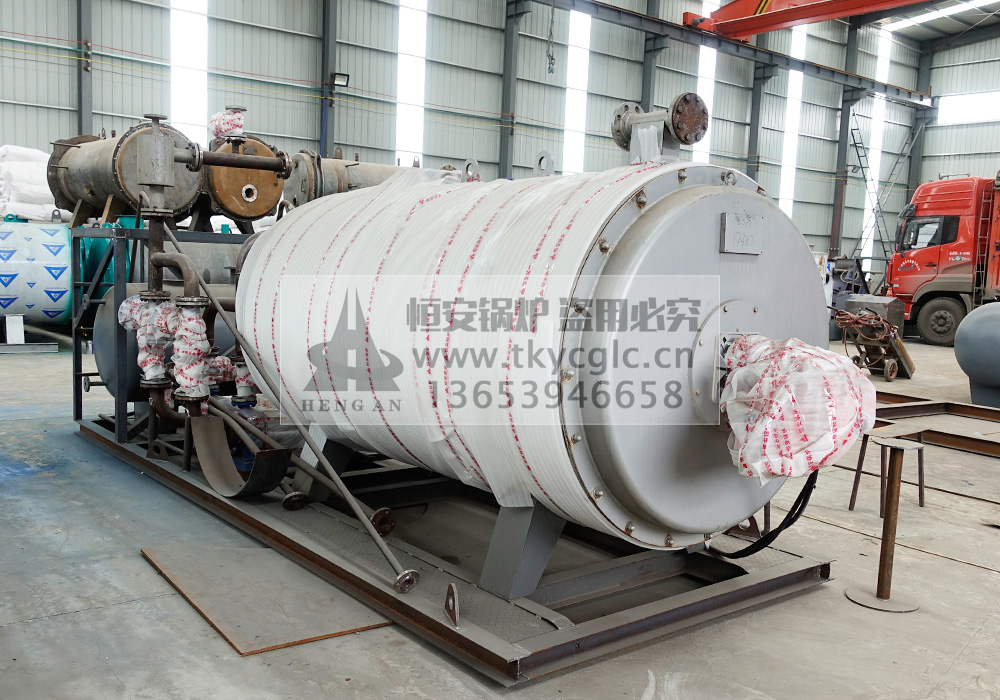

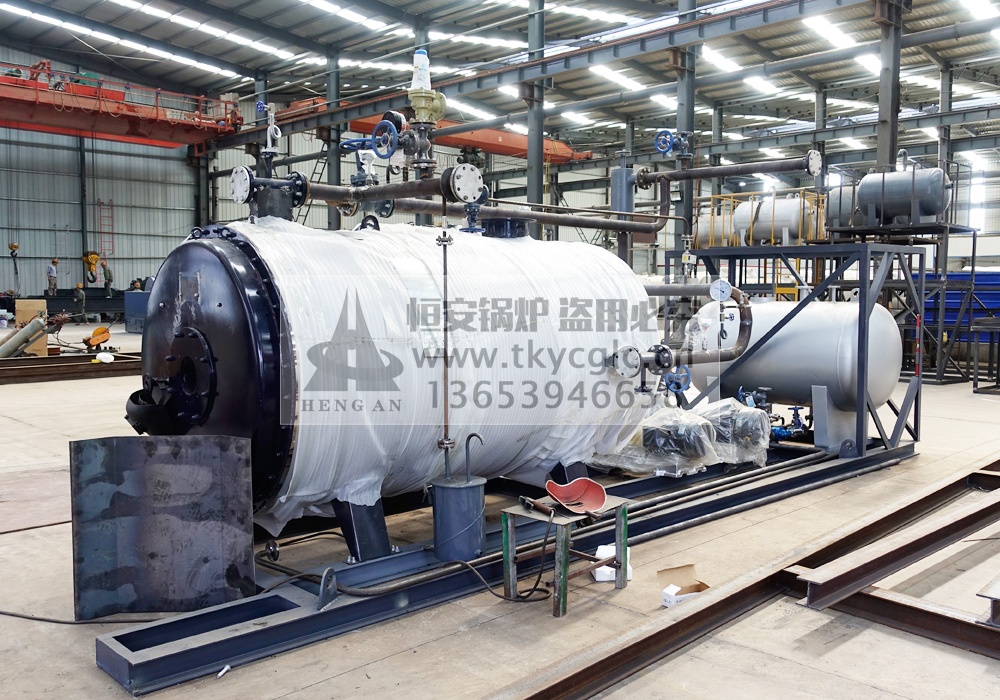

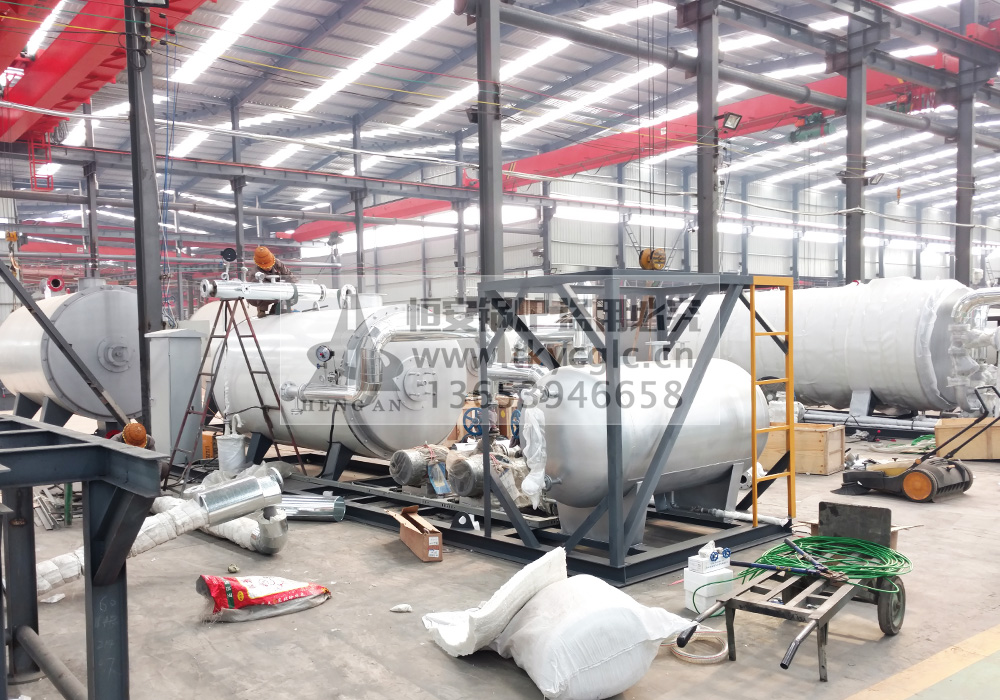

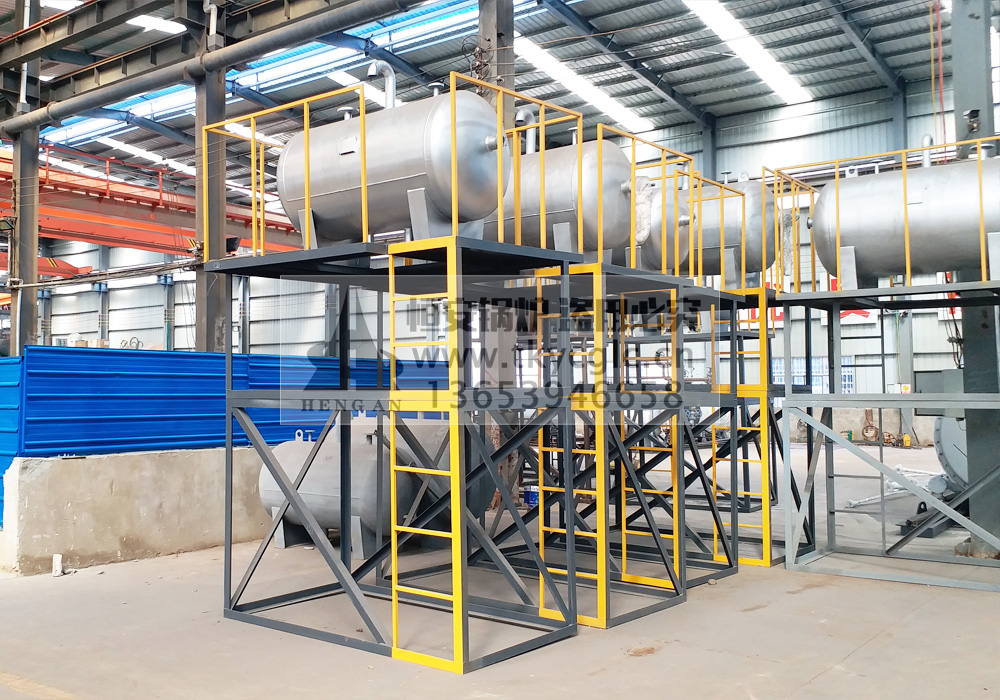

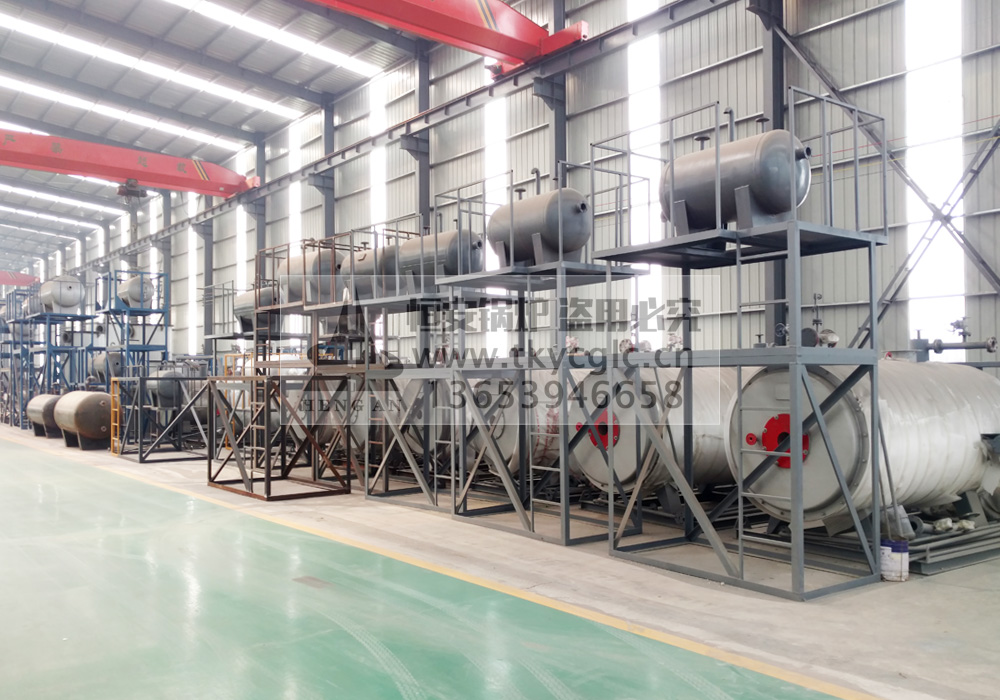

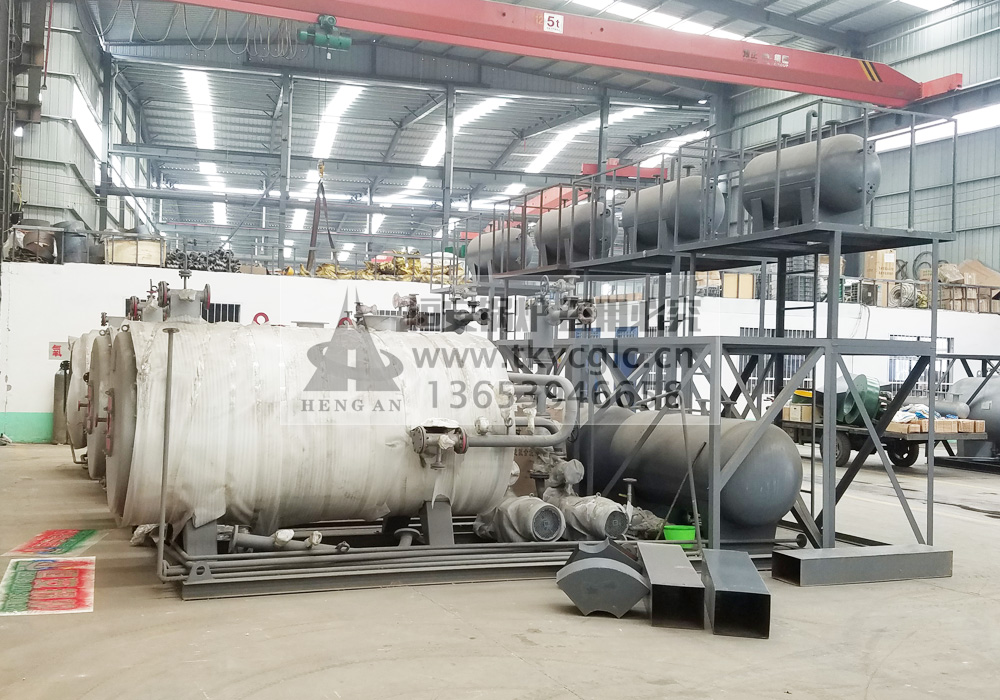

The pictures are shown as follows:
